Ultra-Tec Push-Lock Tensioner With Hanger Bolt For 1/8" Cable - PL-SFC-WS-4

Ultra-Tec Push-Lock Tensioner With Hanger Bolt For 1/8" Cable - PL-SFC-WS-4
$31.68
The Push-Lock Tensioner With Hanger Bolt by Ultra-Tec is an exposed, swageless, tensioning fitting that is designed to be face-mounted to wooden posts (with or without sleeves surrounding them) in level cable runs. It features a more compact design than the comparable swaged Adjust-A-Body fitting and can be used in cable runs with any other type of fitting. For 1/8" Cables Only.

OR

Call (800) 878-7829

Details

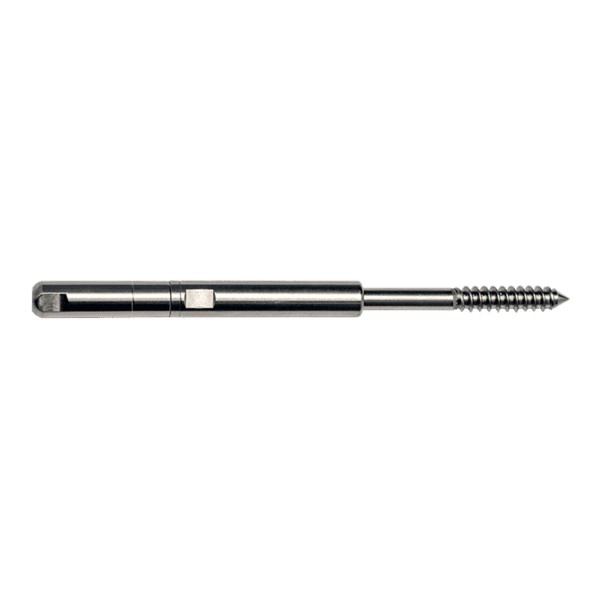

Ultra-Tec Push-Lock Tensioner With Hanger Bolt

The Push-Lock Tensioner With Hanger Bolt by Ultra-Tec is an exposed, swageless, tensioning fitting that is designed to be face-mounted to wooden posts (with or without sleeves surrounding them) in level cable runs. It features a more compact design than the comparable swaged Adjust-A-Body fitting and can be used in cable runs with any other type of fitting.

This fitting consists of two separate parts: The Hanger Bolt and The Push-Lock Tensioning Body. The hanger bolt is driven into a pre-drilled hole in the face of the wooden end post. The cable attaches to the body of the fitting via the Push-Lock locking wedge system which requires no special tools for installation. The machine thread of the hanger bolt then threads into the body of the fitting, connecting the two parts. Tension is created by securing the post-side segment of the body onto the machine threads while preventing the cable-side segment of the body from turning.

Features:

  • Cable Size: 1/8"
  • Level Cable Runs
  • Post-Mounted (Wood)
  • Swageless, Tensioning Fitting
  • No Special Tools Required For Installation

Specification Sheet

Additional Information

SKU PL-SFC-WS-4
Hardware Type Push-Lock Tensioner With Hanger Bolt
Cable Diameter 1/8"
Fitting Type Swageless, Tensioning
Material Stainless Steel
Environmental Impact Made Of Recycled Materials
Country of Manufacture United States
Manufacturer Ultra-Tec
