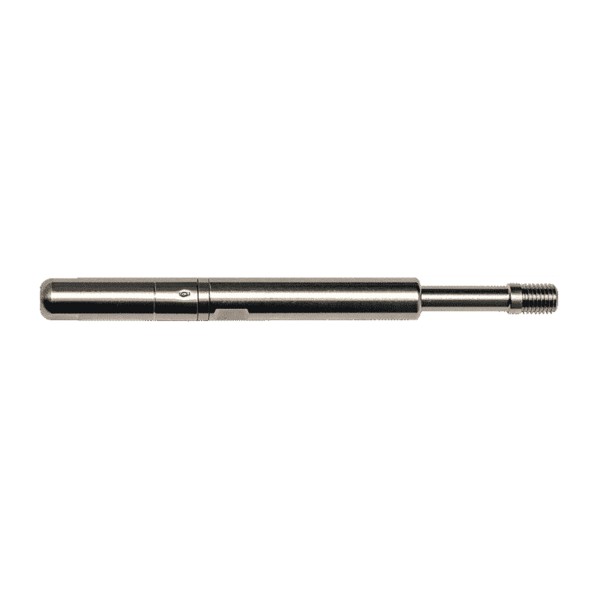

Ultra-Tec Push-Lock Tensioner With Threaded Bolt
The Push-Lock Tensioner With Threaded Bolt by Ultra-Tec is an exposed, swageless, tensioning fitting that is designed to be face-mounted to metal posts in level cable runs only. With the versatile Push-Lock tensioning style that is featured with this fitting, you can use any other type of fitting on the opposite end of your cable run.
This fitting consists of two separate parts: The Threaded Bolt and The Push-Lock Tensioning Body. First, the threaded bolt is installed into a pre-drilled and tapped hole in your metal end post. The cable attaches to the body of the fitting via the Push-Lock locking wedge system which requires no special tools for installation. The body threads onto the other end of the fitting, connecting the two parts. Tension is created by securing the post-side segment of the body onto the machine threads while preventing the cable-side segment of the body from turning.
- Cable Size: 1/8"
- Level Cable Runs
- Post-Mounted (Metal)
- Swageless, Tensioning Fitting
- Requires No Special Tools For Installation
|Hardware Type||Push-Lock Tensioner With Threaded Bolt|
|Fitting Type||Swageless, Tensioning|
|Environmental Impact||Made Of Recycled Materials|
|Country of Manufacture||United States|
Ultra-Tec Push-Lock Tensioner With Threaded Bolt For 1/8" Cable - PL-SFC-MS-4
