Ultra-Tec Push-Lock Threaded Bolt For 1/8" Cable - PL-FM-MS-4

Ultra-Tec Push-Lock Threaded Bolt For 1/8" Cable - PL-FM-MS-4
$12.11
The Push-Lock Threaded Bolt by Ultra-Tec is an exposed, swageless, non-tensioning fitting that is designed to be surface-mounted to metal posts on level runs. For 1/8" Cables Only.

OR

Call (800) 878-7829

Details

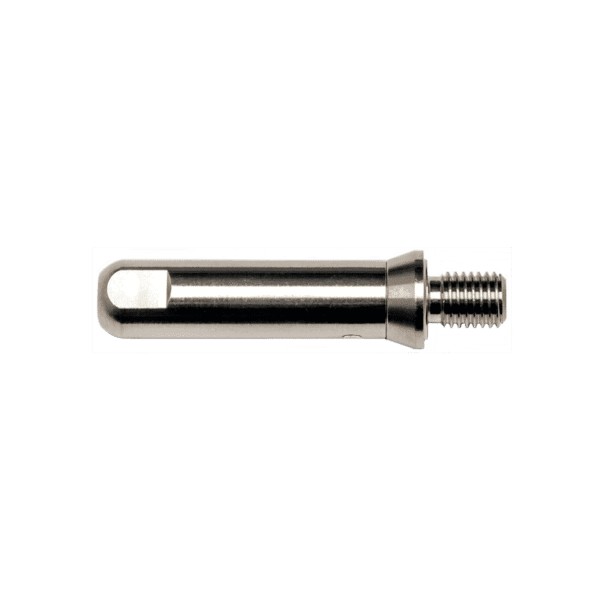

Ultra-Tec Push-Lock Threaded Bolt

The Push-Lock Threaded Bolt by Ultra-Tec is an exposed, swageless, non-tensioning fitting that is designed to be surface-mounted to metal posts on level runs. Because of the mechanism of this fitting, you must use a tensioning fitting on the opposite end of your cable run. This fitting is typically chosen by individuals who are seeking a simple to use, swageless fitting that will provide a symmetrical look when used with a face mounted tensioner. It is also ideal for applications where there is no access available to the back side of your end post.

The fitting is installed into a pre-drilled and tapped hole, with the included Delrin Washer installed between the shoulder of the fitting and the surface of the end post. The cable then attaches via the Push-Lock locking wedge system which requires no special tools, making for a quick and easy installation.

Features:

  • Cable Size: 1/8"
  • Level Cable Runs
  • Post-Mounted (Metal)
  • Swageless, Non-tensioning Fitting
  • Requires No Special Tools For Installation

Specification Sheet

Additional Information

SKU PL-FM-MS-4
Hardware Type Push-Lock Threaded Bolt
Cable Diameter 1/8"
Fitting Type Non-Tensioning, Swageless
Material Stainless Steel
Environmental Impact Made Of Recycled Materials
Country of Manufacture United States
Manufacturer Ultra-Tec
