Ultra-Tec 2.300" Pull-Lock Fitting For 1/8" Cable - PUL-4-2.300
Details

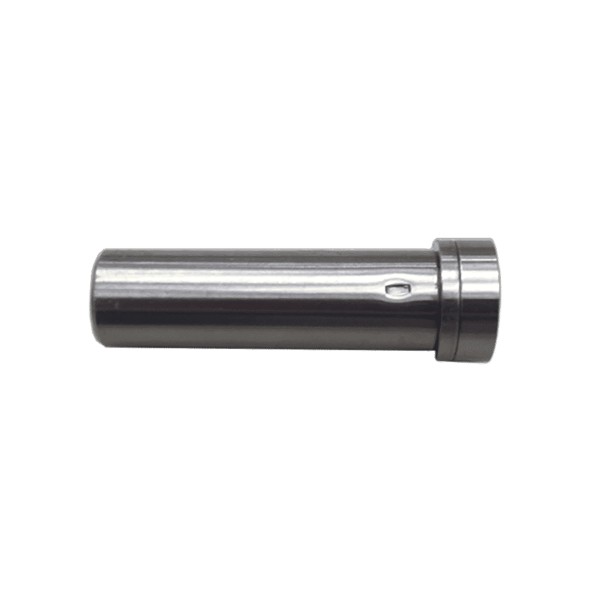

Ultra-Tec 2.300" Pull-Lock Fitting For 1/8" Cable - PUL-4-2.300
The Pull-Lock is a concealed, swageless, non-tensioning fitting designed for through-post applications on level or pitched cable runs on metal posts. Due to the locking mechanism of this fitting, the Pull-Lock must be used with a tensioning fitting on the opposite end of the cable run, and when paired with an Invisiware Receiver Tensioner Fitting, the cable run will have no visible hardware between the end posts.
To install, simply attach the tensioning fitting on the opposing end, slip the Pull-Lock fitting into a pre-drilled hole on the opposite end post and pull the cable all of the way through the Pull-Lock Fitting. Apply tension to the cables and then cut the excess cable off of the back side of the fitting by using a Cutting Wheel. Press on the stainless steel cap to cover the bare cable end, and you're done! This simple, yet effective feature eliminates the need for taking precise cable length measurements, and ultimately allows for simplified installation. For that reason, this fitting is one of the most popular ones available on the market today.
*Pull-Lock fittings cannot be used with angle shapes or flat bars in pitched applications unless the post hole is drilled at the angle of the stair rake and a beveled washer is used.
Features:
- Cable Size: 1/8" Only
- Application Type: Level or Pitched
- Post Type: Metal
- Fitting Length: 3.030"
- Round Pipe Frame Size: 2" (Will Protrude From Cable Side Of Post +/- 0.125")
| Fitting Type | Non-Tensioning, Swageless |
|---|---|
| Material | Stainless Steel |
| Environmental Impact | Made Of Recycled Materials |
| SKU | PUL-4-2.300 |
| Hardware Type | Pull-Lock |
| Fits Frame Size | 2" Round Pipe |
| Cable Diameter | 1/8" |
| Manufacturer | Ultra-Tec |
| Country of Manufacture | United States |
