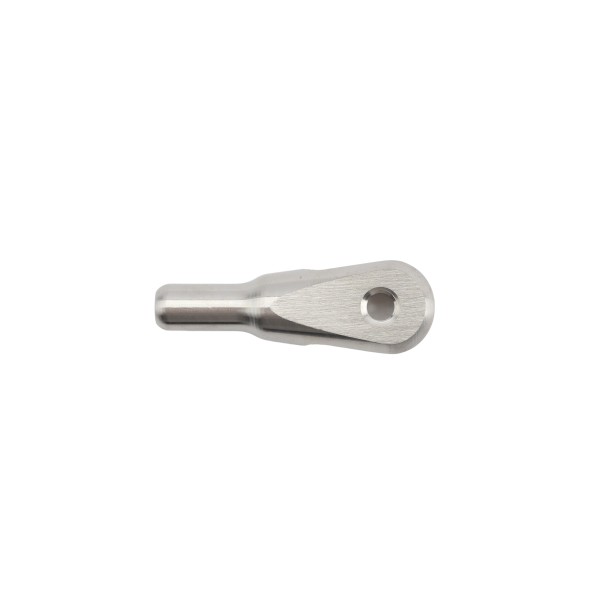

Ultra-Tec Fixed Jaw For 1/8" or 3/16" Cable - F-J62

The Fixed Jaw by Ultra-Tec is an exposed, swaged, non-tensioning fitting that is designed to be surface-mounted on either metal or wooden posts in both level and pitched applications. For 1/8" or 3/16" Cables Only.
Part Number: F-J62
$30.18 each
$30.18 each
OR
Quantity Price Each
  1+$30.18
  25+$29.3752
  50+$28.1680

Details

Ultra-Tec Fixed Jaw For 1/8" or 3/16" Cable - F-J62

The Fixed Jaw by Ultra-Tec is an exposed, swaged, non-tensioning fitting that is designed to be surface-mounted on either metal or wooden posts in both level and pitched applications. Beacause of the mechanism of this fitting, it must be used with any kind of tensioning fitting on the opposite end of the cable run, however it is aesthetically designed to be most compatible when used with the Adjust-A-Jaw Tensioning Fitting. While this fitting can be used on both level and pitched applications, it is most commonly used on pitched applications because of the pivoting action that occurs at tab and/or lag eye.

For metal end post installations, the Fixed Jaw fitting attaches to the end post by first installing a threaded tab into a pre-drilled and tapped hole in the end post and then connecting the fitting and the threaded tab by using a button head mounting screw. For wooden end post installations, the Fixed Jaw fitting attaches to the end post by first installing a lag eye into a pre-drilled hole in the end post and then connecting the fitting and the lag eye by using a button head mounting screw. For both types of installations, a ferrule must be swaged onto the end of the cable in order to retain the tension that is applied.

*Ferrules, Mounting Screws, Threaded Tabs and Lag Eyes Sold Separately.

Features:

  • Cable Size: 1/8" or 3/16"
  • Level or Pitched Applications
  • Wooden or Metal End Posts (Surface-Mounted)
  • Swaged, Non-Tensioning Fitting
  • Aesthetically Similar To Adjust-A-Jaw Tensioning Fitting

Specification Sheet

Prefer to Call? (888) 378-1139

Questions about part number F-J62?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU F-J62
Hardware Type Fixed Jaw
Cable Diameter 1/8" or 3/16"
Fitting Type Non-Tensioning, Swaging
Material Stainless Steel
Environmental Impact Made Of Recycled Materials
Country of Manufacture United States
Manufacturer Ultra-Tec
