Ultra-Tec Adjust-A-Body With Conrete Anchor Bolt Tensioner For 1/8" or 3/16" Cable - A-JAB6

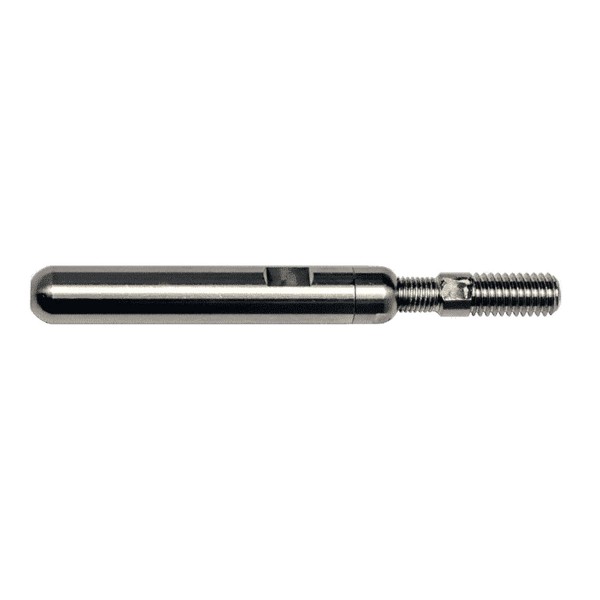

The Adjust-A-Body With Concrete Anchor Bolt by Ultra-Tec is an exposed, swaged, tensioning fitting that is designed to be used with level runs that terminate at a concrete surface. Because of the tensioning nature of this fitting, it can be used with any other type of fitting on the opposite end of your cable run.
To install this fitting, you must first drive a concrete anchor into a pre-drilled hole in the concrete surface. Following this, the short thread of the anchor bolt portion of the fitting is threaded into the concrete anchor. The cable is retained within the body portion of the fitting by a ferrule swaged onto the end of the cable. The lock nut is then installed all of the way onto the exposed machine thread of the anchor bolt, followed by the body, which is secured onto the anchor bolt until effectively creating tension on the cable. Once your desired tension is achieved, the lock nut is to be secured against the end of the body to prevent the fitting from loosening.
Use of this fitting requires that the appropriately sized ferrule is swaged onto the cable. When Using 1/8" Cable, Ferrule F-4 Is Required. When Using 3/16" Cable, Ferrule F-6 Is Required.
Features:
- Cable Size: 1/8" or 3/16"
- For Concrete Posts Only
- Exposed, Swaged, Tensioning Fitting
| SKU | A-JAB6 |
|---|---|
| Hardware Type | Adjust-A-Body With Concrete Anchor Bolt |
| Cable Diameter | 1/8" or 3/16" |
| Fitting Type | Swaging, Tensioning |
| Material | Stainless Steel |
| Environmental Impact | Made Of Recycled Materials |
| Country of Manufacture | United States |
| Manufacturer | Ultra-Tec |
