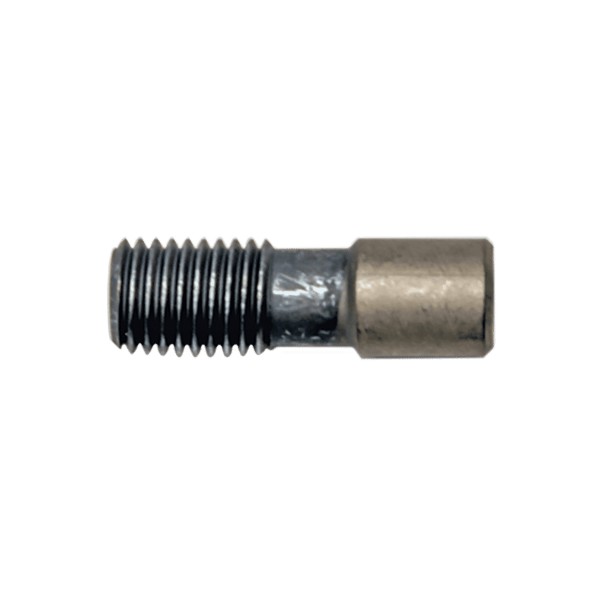

Ultra-Tec Invisiware Swaging Stud For 3/16" Cables - S-6

Invisiware Swaging Studs can be used as non-tensioning fittings for both level and pitched applications. It is swaged onto the end of a cable and then threaded into a drilled and tapped hole in the face of the post. For Use With 3/16" Cables Only.
Part Number: S-6
$4.1850 each
$4.1850 each
OR
Quantity Price Each
  1+$4.1850
  25+$4.0734
  50+$3.9060

Details

Ultra-Tec Invisiware Swaging Stud For 3/16" Cables - S-6

The S-6 Invisiware Swaging Stud can be used as a non-tensioning fitting in both level and pitched applications. It is swaged onto the end of a 3/16" cable and threaded into a drilled and tapped hole in the face of the post (1/4" wall thickness minimum). Typically, this fitting is used in collaboration with Invisiware Receivers and stud tensioning fittings on the opposite end, however when using this fitting as a non-tensioning end, you are restricted to use in interior applications only. Additionally, this swaging stud features a threaded surface and comes coated with a baked-on molybdenum-based dry film lubricant in order to prevent the threads from slipping once tension is applied to the cable.

**Invisiware Swaging Studs are most commonly used with Invisiware Receivers. Refer to the chart below for guidelines as to which Invisiware Receiver you should use with your Swaging Stud.

Features:

  • For Use With 3/16" Cables
  • Thread Size: 5/16-24
  • Length: 1.140"
  • Diameter After Swaging: 0.250"

Specification Sheet

Name Ultra-Tec Invisiware Swaging Stud For 3/16" Cables - S-6
SKU S-6
Hardware Type Invisiware Stud
Cable Diameter 3/16"
Fitting Type Non-Tensioning, Swaging
Material Stainless Steel
Environmental Impact Made Of Recycled Materials
Country of Manufacture United States
Manufacturer Ultra-Tec
Price $4.1850
